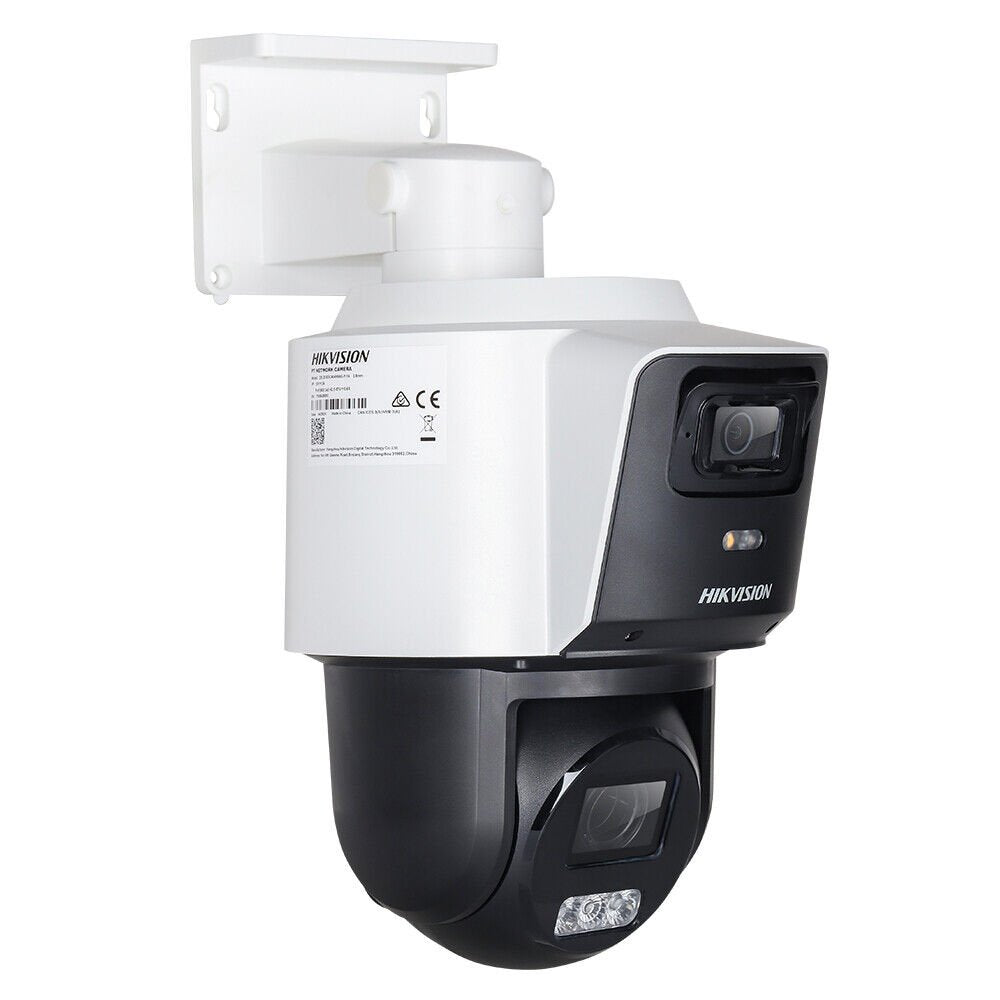

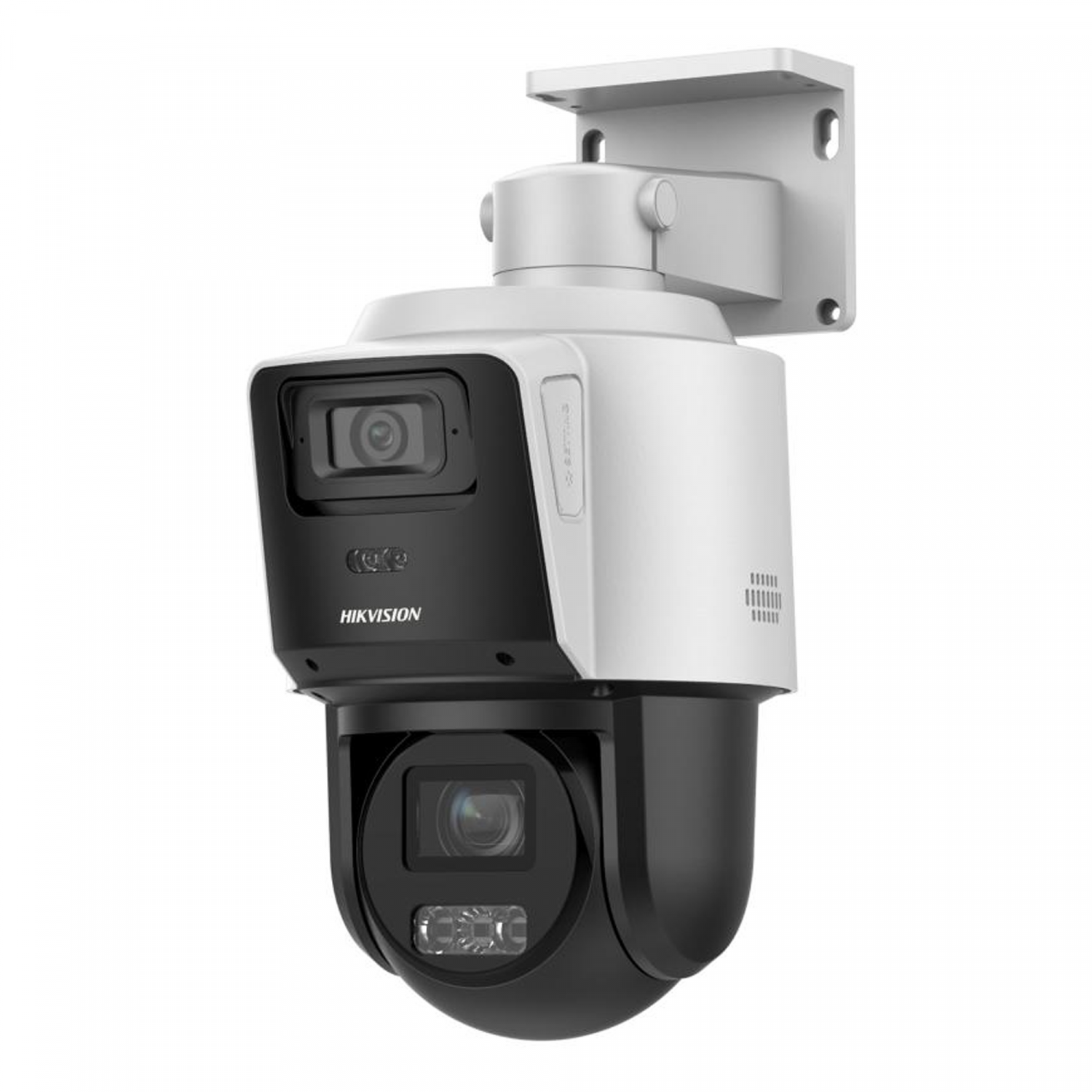

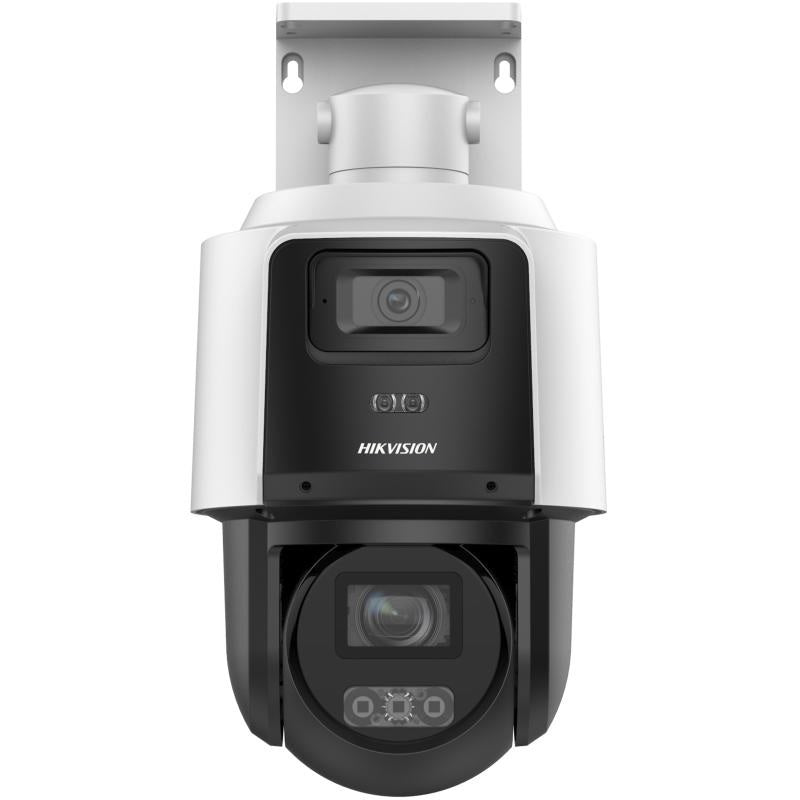

TandemVu 4MP+4MP 4X POE PTZ Network Camera

Product ID: HIK-DS-2SE3C404MWG-E - TandemVu 4MP+4MP 4X

Overview:

• Captures a large area and great details at the same time
• High quality imaging with 4 MP resolution
• Excellent low-light performance with powered-by-DarkFighter technology
• Secures an expansive area with 4× optical zoom and 16× digital zoom
• Supports WDR, HLC, BLC, 3D DNR, defog, regional exposure, regional focus
• Supports 12V DC & PoE+
• Support Human and Vehicle Detection

Full Specifications:

    Camera
    Image Sensor[Bullet channel]: 1/2.8″ Progressive Scan CMOS; [PTZ channel]: 1/2.8″ progressive scan CMOS
    Min. Illumination

    [Bullet channel]: Color: 0.01 Lux @ (F1.6, AGC ON)，B/W: 0.005 Lux @ (F1.6，AGC ON), 0 Lux with IR;

    [PTZ channel]: Color: 0.01 Lux @ (F1.5, AGC ON), B/W: 0.005Lux @ (F1.5, AGC ON), 0 Lux with IR
    Shutter Speed1 s to 1/30,000 s
    Slow Shutter
    Day & Night ICR
    Zoom[PTZ channel] 4 × optical, 16 × digital
    Max. Resolution[Bullet channel] 2560 × 1440, [PTZ channel] 2560 × 1440

    Lens
    Focus auto,manual,semi-auto
    Focal Length[Bullet channel]: 2.8 mm; [PTZ channel]: 2.8 to 12 mm, 4 × optical
    Zoom Speed[PTZ channel]: approx. 3.3 s
    FOV [Bullet channel] horizontal field of view: 114.9°, vertical field of view: 62.4°, diagonal field of view: 130.7°, [PTZ channel] horizontal field of view: 98° to 34.2°, vertical field of view: 52° to 19.2°, diagonal field of view: 111° to 39°
    Aperture[Bullet channel]: F1.6; [PTZ channel]: F1.5 to F2.9

    Illuminator
    Supplement Light Type [Bullet channel] Hybrid (IR and White Light), [PTZ channel] IR
    Smart Supplement Light
    Supplement Light Range

    [PTZ channel]: IR Distance: up to 40 m;

    [Bullet channel]: IR Distance: up to 30 m; White Light Distance: 30 m

    PTZ
    Movement Range (Pan)0° to 350°
    Movement Range (Tilt)[Bullet channel] 7° to 17° (manually adjust), [PTZ channel] -5° to 90°
    Pan Speedpan speed: configurable from 0.1° to 30°/s; preset speed: 30°/s
    Tilt Speedtilt speed: configurable from 0.1° to 30°/s, preset speed 30°/s
    Proportional Panyes
    Presets300
    Patrol Scan8 patrols, up to 32 presets for each patrol
    Power-off Memoryyes
    Park Actionpreset,patrol scan
    3D Positioningyes
    PTZ Status Displayyes
    Preset Freezingyes
    Scheduled Taskdome reboot,preset,patrol scan,dome adjust,aux output

    Video
    Region of Interest (ROI)1 fixed regions for main stream
    Main Stream

    [Bullet channel]:

    50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720)

    60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 720)

    [PTZ channel]:

    50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720)

    60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
    Sub-Stream

    [Bullet channel]:

    50 Hz: 25 fps (640 × 480, 640 × 360)

    60 Hz: 30 fps (640 × 480, 640 × 360)

    [PTZ channel]:

    50 Hz: 25 fps (640 × 480, 640 × 360)

    60 Hz: 30 fps (640 × 480, 640 × 360)
    Third Stream

    [Bullet channel]:

    50 Hz: 25 fps (1280 × 720，640 × 480，640 × 360)

    60 Hz: 30 fps (1280 × 720，640 × 480，640 × 360)

    [PTZ channel]:

    50 Hz: 25 fps (1280 × 720，640 × 480，640 × 360)

    60 Hz: 30 fps (1280 × 720，640 × 480，640 × 360)
    Video CompressionH.265,H.264,MJPEG
    Video Bit Rate32 kbps to 16384 kbps
    H.264 Typemain profile,baseline profile,high profile
    H.265 Typemain profile
    Scalable Video Coding (SVC)yes

    Audio
    Audio CompressionG.711,G.722.1,G.726,MP2L2,PCM,MP3,AAC
    Audio Bit RateMP2L2: 32 kbps, 40 kbps, 48 kbps, 56 kbps, 64 kbps, 80 kbps, 96 kbps, 112 kbps, 128 kbps, 144 kbps, 160 kbps; AAC : 16 kbps, 32 kbps, 64 kbps; MP3: 8 kbps, 16 kbps, 32 kbps, 40 kbps, 48 kbps, 56 kbps, 64 kbps, 80 kbps, 96 kbps, 112 kbps, 128 kbps, 144 kbps, 160 kbps
    Audio Sampling RateMP2L2: 16 kHz,AAC-LC: 16 kHz,PCM: 8 kHz, 16 kHz,MP3: 8 kHz, 16 kHz
    Environment Noise Filteringyes

    Network
    APIONVIF (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP
    Network StorageNAS (NFS, SMB/ CIFS),ANR, ANR
    ProtocolsTCP/IP,SMTP,RTSP,FTP,WebSockets,IGMP,WebSocket,Qos,RTCP,HTTPS,PPPoE,SNMP,NTP,RTP,UDP,DNS,HTTP,DHCP,Bonjour,802.1x,IPv4/IPv6,DDNS,ICMP,UPnP
    Simultaneous Live View20
    User/Host32
    Security802.1X authenticated access,MAC address binding,Authenticated username and password,IP address filter,HTTPS encryption
    ClientiVMS-4200,Hik-Connect
    Web BrowserIE8+, Chrome31 to 44, Firefox 30 to 51, Safari8.0+

    Image Settingssharpness, saturation, brightness, contrast
    Wide Dynamic Range (WDR)120 dB
    SNR≥ 52 dB
    DefogDigital defog
    Day/Night Switchday, night, auto, scheduled-switch
    Image EnhancementBLC,HLC,3D DNR
    Privacy Mask[Bullet channel] 24 programmable polygon privacy masks, [PTZ channel] 24 programmable polygon privacy masks
    Regional Focus[Bullet channel] No, [PTZ channel] Yes
    Regional Exposure[Bullet channel] No, [PTZ channel] Yes
    Image Parameters SwitchYes

    Interface
    Ethernet InterfaceRJ45, self-adaptive 10M/100M Ethernet port
    On-board StorageBuilt-in memory card slot, support Micro SD/SDHC/SDXC, up to 512 GB
    Resetyes

    Event
    Basic EventMotion detection,video tampering alarm,exception,alarm input and output
    Smart EventLine crossing detection,intrusion detection,region entrance detection,region exiting detection,audio exception detection
    Linkage[Bullet channel] Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, and trigger recording, [PTZ channel] Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, and PTZ actions (such as preset, patrol scan, pattern scan)

    General
    General Functionmirror,watermark,IP address filter,password protection
    Power12 VDC, PoE+
    Operating Condition-30 °C to 50 °C (-22 °F to 122 °F). Humidity 95% or less (non-condensing)
    DemistDemist by heating the glass
    MaterialPC
    Dimension311.5 mm × 223.5 mm × 156 mm (12.26″ × 8.80″ × 6.14″)
    WeightApprox. 1.37 kg (3.02 lb.)

    Approval
    ProtectionIP66 Standard, Surge Protection and Voltage Transient Protection

Specifications

• Camera
• Image Sensor[Bullet channel]: 1/2.8″ Progressive Scan CMOS; [PTZ channel]: 1/2.8″ progressive scan CMOS
• Min. Illumination

  [Bullet channel]: Color: 0.01 Lux @ (F1.6, AGC ON)，B/W: 0.005 Lux @ (F1.6，AGC ON), 0 Lux with IR;

  [PTZ channel]: Color: 0.01 Lux @ (F1.5, AGC ON), B/W: 0.005Lux @ (F1.5, AGC ON), 0 Lux with IR

• Shutter Speed1 s to 1/30,000 s
• Slow Shutteryes
• Day & NightICR
• Zoom[PTZ channel] 4 × optical, 16 × digital
• Max. Resolution[Bullet channel] 2560 × 1440, [PTZ channel] 2560 × 1440

• Lens
• Focusauto,manual,semi-auto
• Focal Length[Bullet channel]: 2.8 mm; [PTZ channel]: 2.8 to 12 mm, 4 × optical
• Zoom Speed[PTZ channel]: approx. 3.3 s
• FOV[Bullet channel] horizontal field of view: 114.9°, vertical field of view: 62.4°, diagonal field of view: 130.7°, [PTZ channel] horizontal field of view: 98° to 34.2°, vertical field of view: 52° to 19.2°, diagonal field of view: 111° to 39°
• Aperture[Bullet channel]: F1.6; [PTZ channel]: F1.5 to F2.9

• Illuminator
• Supplement Light Type[Bullet channel] Hybrid (IR and White Light), [PTZ channel] IR
• Smart Supplement LightYes
• Supplement Light Range

  [PTZ channel]: IR Distance: up to 40 m;

  [Bullet channel]: IR Distance: up to 30 m; White Light Distance: 30 m

• PTZ
• Movement Range (Pan)0° to 350°
• Movement Range (Tilt)[Bullet channel] 7° to 17° (manually adjust), [PTZ channel] -5° to 90°
• Pan Speedpan speed: configurable from 0.1° to 30°/s; preset speed: 30°/s
• Tilt Speedtilt speed: configurable from 0.1° to 30°/s, preset speed 30°/s
• Proportional Panyes
• Presets300
• Patrol Scan8 patrols, up to 32 presets for each patrol
• Power-off Memoryyes
• Park Actionpreset,patrol scan
• 3D Positioningyes
• PTZ Status Displayyes
• Preset Freezingyes
• Scheduled Taskdome reboot,preset,patrol scan,dome adjust,aux output

• Video
• Region of Interest (ROI)1 fixed regions for main stream
• Main Stream

  [Bullet channel]:

  50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720)

  60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 720)

  [PTZ channel]:

  50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720)

  60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 720)

• Sub-Stream

  [Bullet channel]:

  50 Hz: 25 fps (640 × 480, 640 × 360)

  60 Hz: 30 fps (640 × 480, 640 × 360)

  [PTZ channel]:

  50 Hz: 25 fps (640 × 480, 640 × 360)

  60 Hz: 30 fps (640 × 480, 640 × 360)

• Third Stream

  [Bullet channel]:

  50 Hz: 25 fps (1280 × 720，640 × 480，640 × 360)

  60 Hz: 30 fps (1280 × 720，640 × 480，640 × 360)

  [PTZ channel]:

  50 Hz: 25 fps (1280 × 720，640 × 480，640 × 360)

  60 Hz: 30 fps (1280 × 720，640 × 480，640 × 360)

• Video CompressionH.265,H.264,MJPEG
• Video Bit Rate32 kbps to 16384 kbps
• H.264 Typemain profile,baseline profile,high profile
• H.265 Typemain profile
• Scalable Video Coding (SVC)yes

• Audio
• Audio CompressionG.711,G.722.1,G.726,MP2L2,PCM,MP3,AAC
• Audio Bit RateMP2L2: 32 kbps, 40 kbps, 48 kbps, 56 kbps, 64 kbps, 80 kbps, 96 kbps, 112 kbps, 128 kbps, 144 kbps, 160 kbps; AAC : 16 kbps, 32 kbps, 64 kbps; MP3: 8 kbps, 16 kbps, 32 kbps, 40 kbps, 48 kbps, 56 kbps, 64 kbps, 80 kbps, 96 kbps, 112 kbps, 128 kbps, 144 kbps, 160 kbps
• Audio Sampling RateMP2L2: 16 kHz,AAC-LC: 16 kHz,PCM: 8 kHz, 16 kHz,MP3: 8 kHz, 16 kHz
• Environment Noise Filteringyes

• Network
• APIONVIF (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP
• Network StorageNAS (NFS, SMB/ CIFS),ANR, ANR
• ProtocolsTCP/IP,SMTP,RTSP,FTP,WebSockets,IGMP,WebSocket,Qos,RTCP,HTTPS,PPPoE,SNMP,NTP,RTP,UDP,DNS,HTTP,DHCP,Bonjour,802.1x,IPv4/IPv6,DDNS,ICMP,UPnP
• Simultaneous Live View20
• User/Host32
• Security802.1X authenticated access,MAC address binding,Authenticated username and password,IP address filter,HTTPS encryption
• ClientiVMS-4200,Hik-Connect
• Web BrowserIE8+, Chrome31 to 44, Firefox 30 to 51, Safari8.0+

• Image
• Image Settingssharpness, saturation, brightness, contrast
• Wide Dynamic Range (WDR)120 dB
• SNR≥ 52 dB
• DefogDigital defog
• Day/Night Switchday, night, auto, scheduled-switch
• Image EnhancementBLC,HLC,3D DNR
• Privacy Mask[Bullet channel] 24 programmable polygon privacy masks, [PTZ channel] 24 programmable polygon privacy masks
• Image Parameters Switch

• Interface
• Ethernet InterfaceRJ45, self-adaptive 10M/100M Ethernet port
• On-board Storage
• Built-in memory card slot, support Micro SD/SDHC/SDXC, up to 512 GB
• Reset capability

• Event
• Basic Event: Motion detection,video tampering alarm,exception,alarm input and output
• Smart Event: Line crossing detection,intrusion detection,region entrance detection,region exiting detection,audio exception detection
• Linkage[Bullet channel] Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, and trigger recording, [PTZ channel] Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, and PTZ actions (such as preset, patrol scan, pattern scan)

• General
• General Function mirror,watermark,IP address filter,password protection
• Power12 VDC, PoE+
• Operating Condition-30 °C to 50 °C (-22 °F to 122 °F). Humidity 95% or less (non-condensing)
• Demist Demist by heating the glass
• MaterialPC
• Dimension311.5 mm × 223.5 mm × 156 mm (12.26″ × 8.80″ × 6.14″)
• Weight Approx. 1.37 kg (3.02 lb.)

• Approval
• ProtectionIP66 Standard, Surge Protection and Voltage Transient Protection
